Model: KOMODO-02
Product Type: Tracked Robot Chassis
Main material: stainless steel 304/alloy steel plate
Power supply: 48V DC brushless motor
Design size: 1825*1250*585mm
Weight: 350kg
Payload: 500kg
Colour: Black
Application scenarios: transportation, construction, fire protection and other special industries
Product description

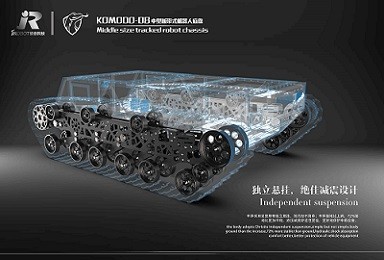

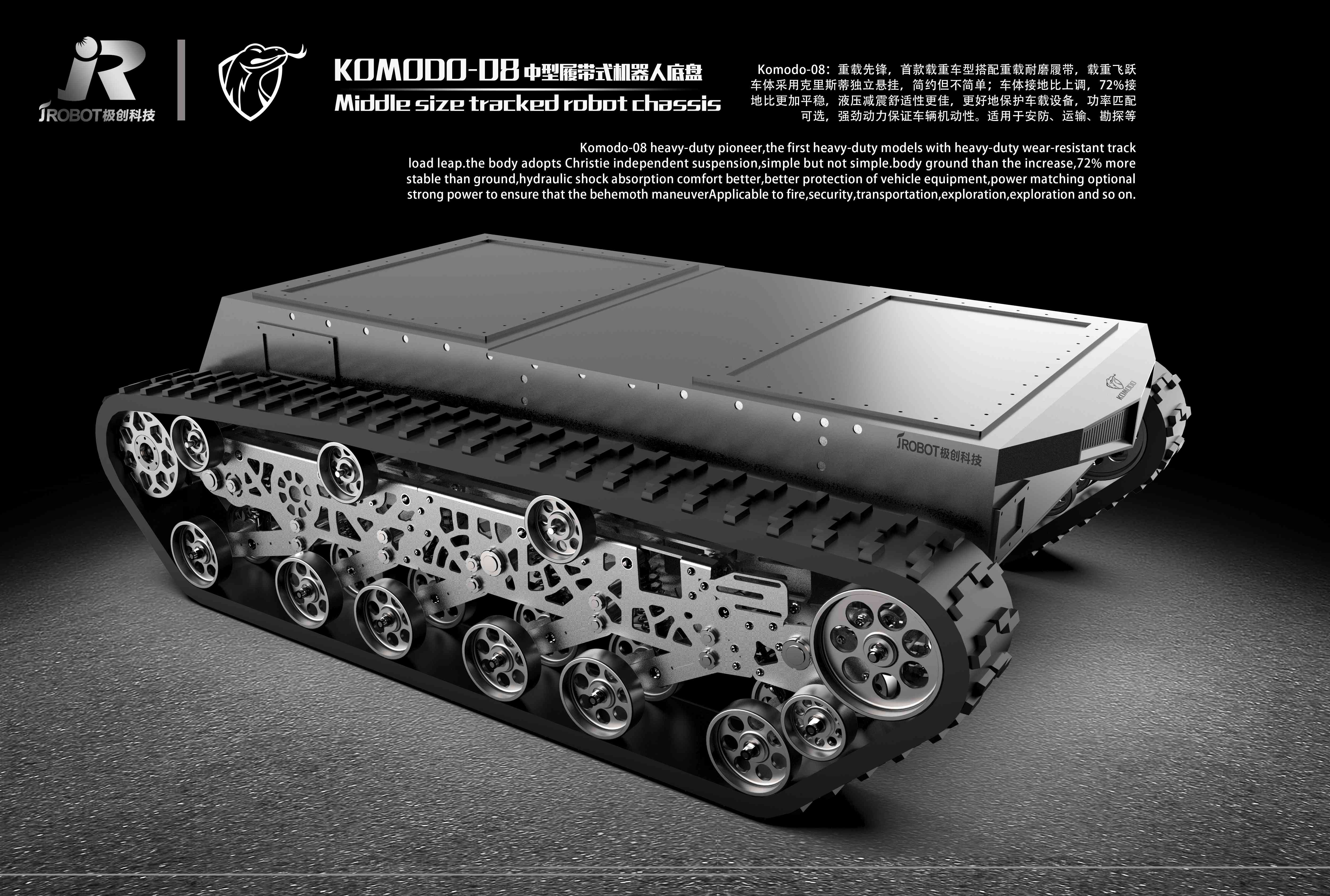

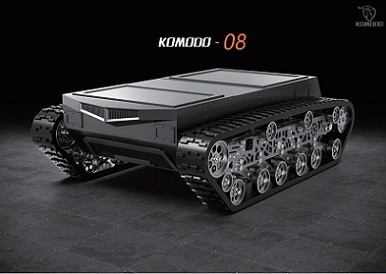

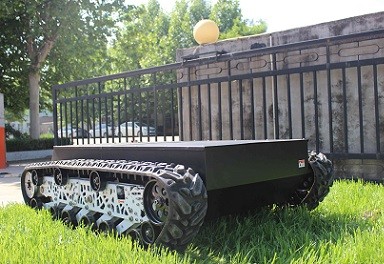

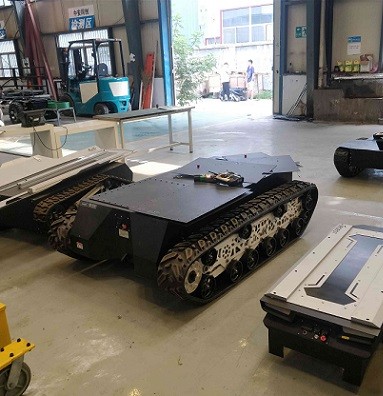

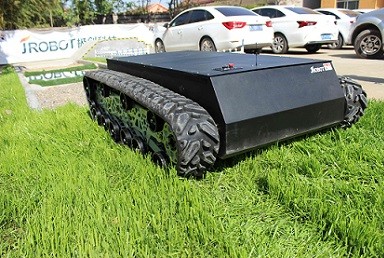

KOMODO-08 heavy-duty pioneer, the first heavy-duty model with heavy-duty wear-resistant crawlers, a leap in load. The car body adopts Christie independent suspension, which is simple but not simple; the car body grounding ratio is increased, 72% grounding ratio is more stable, hydraulic shock absorption is better, and the crawler adopts a high-thickness belt base, which has good flexibility compared to engineering belts. Eliminate high-frequency jitter caused by high-speed movement of engineering belts, which can protect vehicle-mounted equipment even more.
Structural parameters
ITEM | DATA | ITEM | DATA |

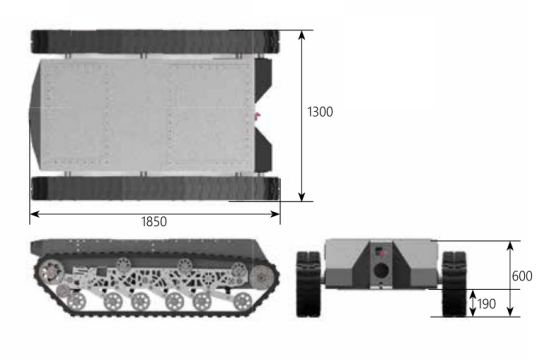

Design size （mm） | 1825*1250*585 | Inner compartment size (without battery) | 650*600*375 |
Chassis weight | 350KG | Running speed | 0--3.5km/h |
Ground clearance | 190mm | Protection class | IP54 |
Maximum span | 600mm | Maximum load | 500KG |
Maximum climb | 30°(Can climb stairs) | Vertical span | 300mm |
Track material | rubber (embedded with Kevlar) | width | 200mm |
Shock absorber system | Christie*12 shock absorption | Main material | 304 stainless steel/alloy steel plate/aluminum/polymer material |
Surface treatment | black plastic spraying (frosted) | Driving wheel diameter | 190mm |
Rated torque | 93.8N·M | Transmission ratio | 28 |
Operating temperature | -20°-- +60° | Drive form | Left and right independent drive Track differential steering |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC48V | Motor | Brushless DC motor |
Whole machine power (max) | 3000W*2 | standby power | ≤50w |
Battery | 48V 80AH | Communication Interface | Standard CAN 232 Serial Port |
Brake type | Power-off brake type | Braking voltage | DC48V |
Encoder | 1024 lines | Drive model | JCDBL60150-2E |
Remote control distance | 800m (visually) | Number of remote control channels | 9T (3T used) |
Optional configuration
Main control type | VCU （Differential） | ||||||
Driver | JCDBL60150-1E | JCDBL6050-2E | |||||
Battery | 48V 150AH | Maximum capacity customization 300AH | |||||
Charger | 10A | 15A | 30A | ||||
Remote control | AT9 | JC9One-handed operation | JC9Video all-in-one | Customized control box | |||
Install bracket | |||||||
Can be upgraded | Heighten | Increase power | |||||
