Model: WT-400
Product Type: Tracked Chassis
Main material: stainless steel 304
Power supply: 12V DC brush motor
Design size: 400*300*115mm
Weight: 7kg
Payload: 15kg
Colour: Black
Application scenarios: Education and teaching development, engineering prototype development
Product description

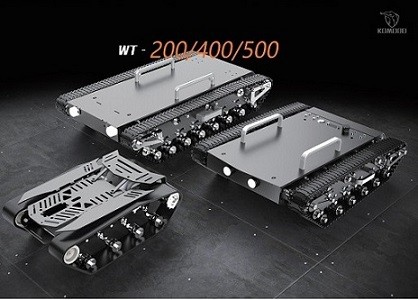

Adhering to the design concept of the WT series, it pursues excellent shock-absorbing performance and shock-absorbing performance. The WT400 is densely packed with more shock-absorbing wheels, with greater load-bearing capacity, greater space, and greater power. The chassis can be used for educational and teaching robot development, engineering prototype development, and small crawler robot development.
Structural parameters
ITEM | DATA | ITEM | DATA |

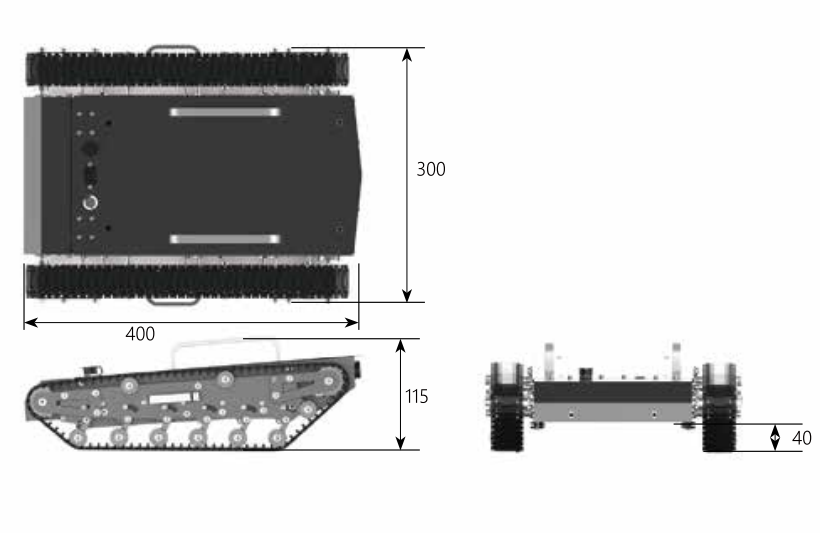

Design size （mm） | 400*300*115 | Inner compartment size (without battery) | 280*180*115 |
Chassis weight | 7KG | Running speed | 0--1.0m/s |
Maximum span | 75mm | Maximum load | 15KG |
Maximum climb | 30° | Track material | Zinc alloy |
Surface treatment | Electrostatic spray (bright white, matte black) | Main material | 304 stainless steel |
Electrical parameters
ITEM | DATA | ITEM | DATA |
Power supply voltage | DC12V | Motor | Brushed DC motor |
Whole machine power (max) | 25W*2 | Braking voltage | DC12V |
Battery | 12V 20AH | Remote control distance | 500m (visually) |
Optional configuration
Main control type | ---- | ||
Driver | Electric regulation | ||
Battery | 12V 20AH | 12V 30AH | |
Charger | 3A | 5A | |
Remote control | AT9 | JC9One-handed operation | |
Install bracket | |||
Can be upgraded | Widen | Heighten | |
